Product Overview

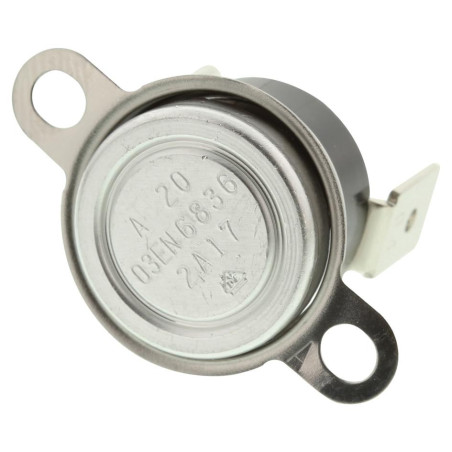

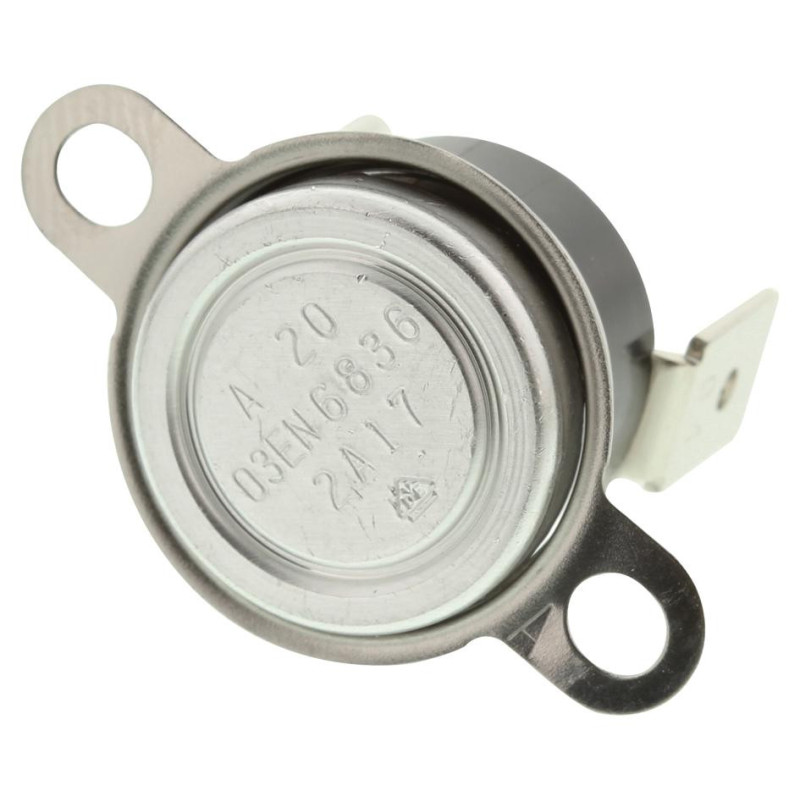

The 03EN15T044(20/10) is a Thermal Switch with snap-action bi-metallic SPST-NC contacts, plastic housing and brass terminals. This thermal cut-out thermostat features automatic reset function, contacts are isolated from the mounting base, reset level is specified to within a close tolerance band and indication of switch temperature is given on base of switch.

    Switching cycles up to 100,000 cycles

    Small tolerances and hysteresis available

    Response temperatures from 0°C to 150°C

    Rated current of 16A at 250VAC (cos φ 0.95 )

    Standard dielectric strength of 2KVAC

    6.3mm x 0.8mm terminals

    SPST NC / NO contact configuration

    Thermosetting plastic 12mm housing

    Moving bracket small and aluminium cap

    Multicomp products are rated 4.6 out of 5 stars

    12 month limited warranty *view Terms & Conditions for details

    96% of customers would recommend to a friend

Applications

Sensing & Instrumentation, Consumer Electronics
