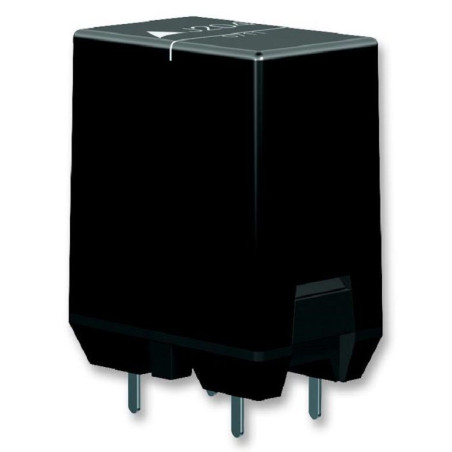

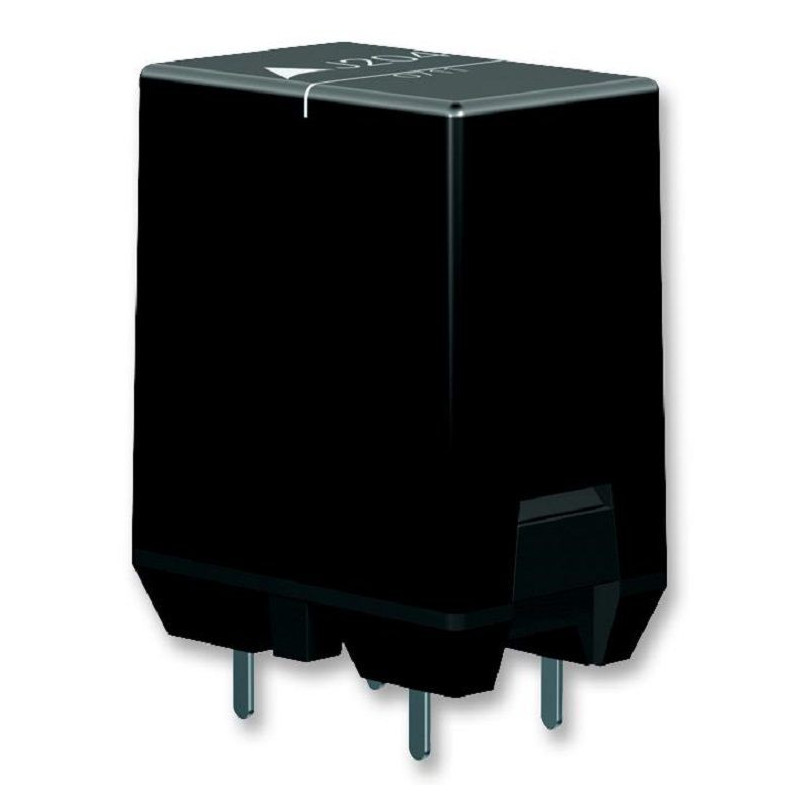

Epcos (B59204J0130B010) Thermistor, Cap Charge, ICL PTC, 100 ohm

Thermistor, Cap Charge, ICL PTC, 100 ohm, -25% to +25%, B5920 Series Product Information Product Range: B5920 Zero Power Resistance at 25°C: 100ohm Approvals: UL Product Overview The B5920 series PTC Thermistor encapsulated in a plastic case. The self-protecting resistor for inrush current limiter (charging resistor) for smoothing and DC link capacitors and to replace high-power fixed resistors for capacitor charging. Self-protecting in case of malfunction of short-circuit relay Encased thermistor disk with clamp contacts For high pulse currents and a high number of operating cycles Flame-retardant plastic case UL-listed case material Sn-plated lead-free solder pins Applications Safety, Industrial
