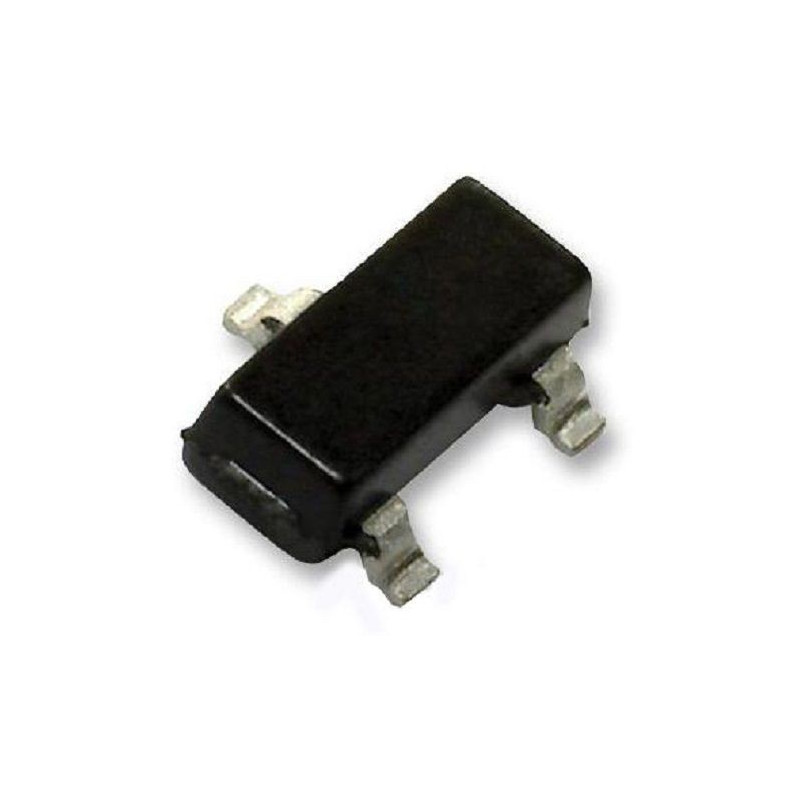

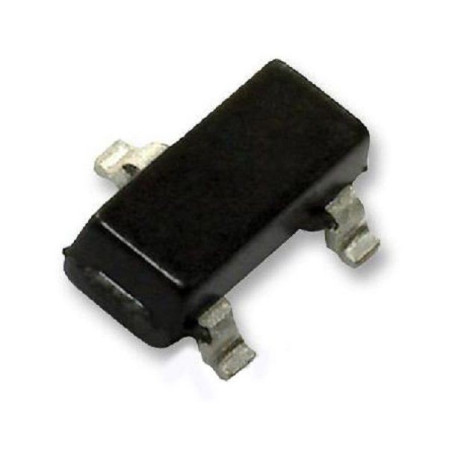

Infineon (BC847CE6327HTSA1) Bipolar Single Transistor, NPN, 45V, 100 mA

Bipolar Single Transistor, NPN, 45V, 100 mA, 330 mW, SOT-23, Surface Mount Product Overview The BC 847C E6327 is a NPN silicon AF Transistor features high current gain and low collector-emitter saturation voltage. This BC 847C E6327 silicon transistor is designed for AF input stages and drivers applications. Low noise between 30Hz and 15kHz AEC-Q101 Qualified Product Information Transistor Polarity: NPN Collector Emitter Voltage V(br)ceo: 45V Transition Frequency ft: 250MHz Power Dissipation Pd: 330mW DC Collector Current: 100mA DC Current Gain hFE: 110hFE Transistor Mounting: Surface Mount Transistor Case Style: SOT-23 No. of Pins: 3Pins Operating Temperature Max: 150°C Product Range: - Automotive Qualification Standard: AEC-Q101 MSL: -
