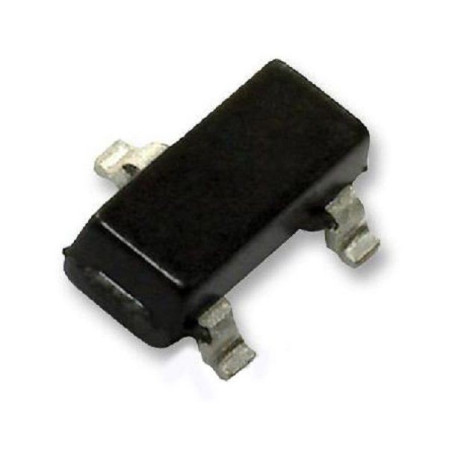

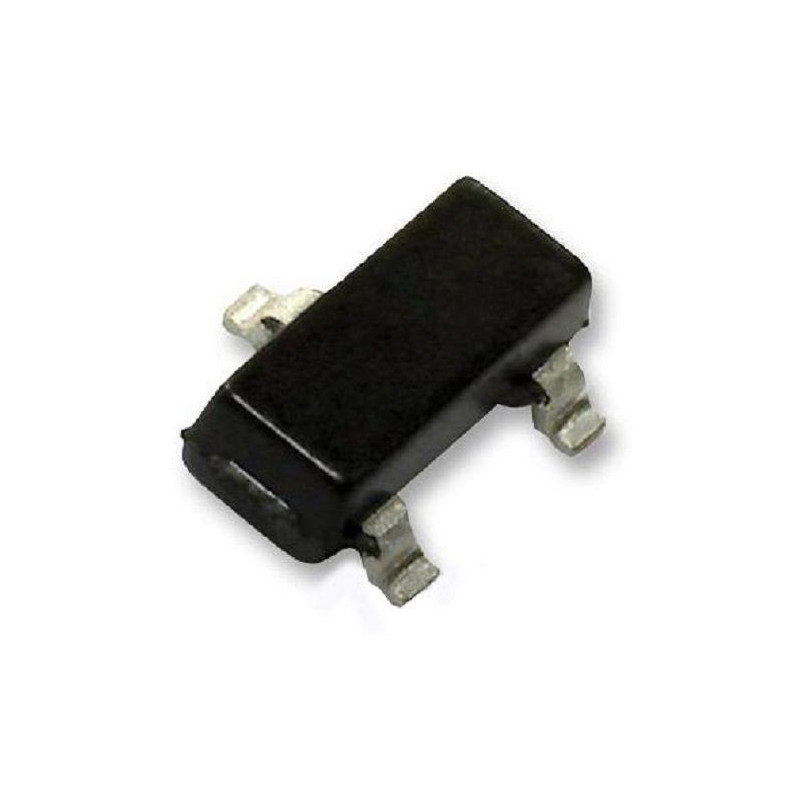

Diodes Inc. (BC846A) Bipolar (BJT) Single Transistor, NPN, 65 V, 100 mA

Product Overview The BC846A is a NPN small signal Bipolar Transistor ideally suitable for automatic insertion, switching and AF amplifier applications. UL94V-0 Flammability rating BC856 - BC858 Complementary PNP types Halogen-free, Green device -65 to 150°C Operating temperature range Applications Aerospace, Defence, Military, Automotive, Power Management, Industrial Product Information Transistor Polarity: NPN Collector Emitter Voltage V(br)ceo: 65V DC Collector Current: 100mA Power Dissipation Pd: 300mW Transistor Case Style: SOT-23 Transistor Mounting: Surface Mount No. of Pins: 3Pins Transition Frequency ft: 300MHz DC Current Gain hFE: 180hFE Operating Temperature Max: 150°C Product Range: - Automotive Qualification Standard: - MSL: -
