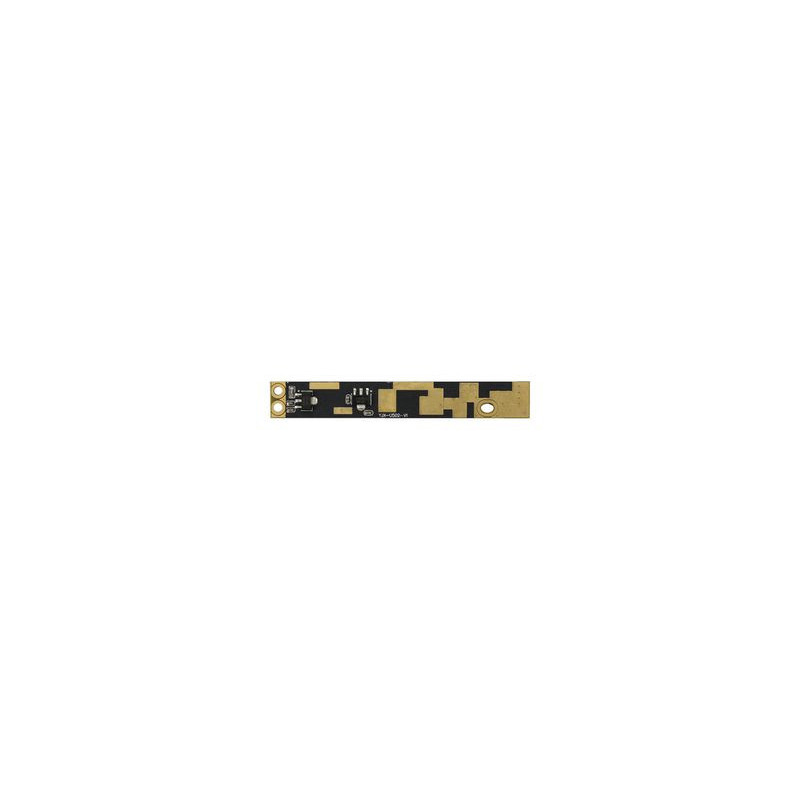

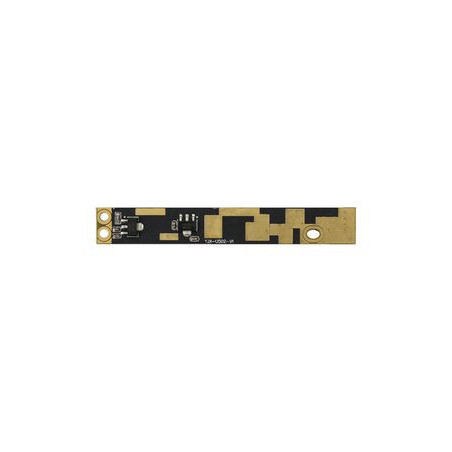

DFROBOT (SEN0286) UVC SENSOR CAMERA BOARD, OV5640, 5MP/SBC

SEN0286 is a LattePanda 5MP UVC camera. This is a high-quality 5-megapixel image sensor with compatibility of different system. Compatible with LattePanda Alpha, LattePanda Delta and LattePanda 3 Delta. UVC (USB video device class) made the camera has no need for any driver on windows, Linux or Android. USB 2.0 port, support OTG, auto-focus, automatic low light correction all these is for plug and play. With its small size, you can use it in your face/object recognition project, or even as a regular webcam.

OV5640 sensor

2592 x 1944 pixel static images

72° FOV

MJPEG & YUV support formats

Operation temperature range from -30 to 70°C

5V power supply, 140mA operation current

USB2.0 interface

Module size is 9mm x 62mm
