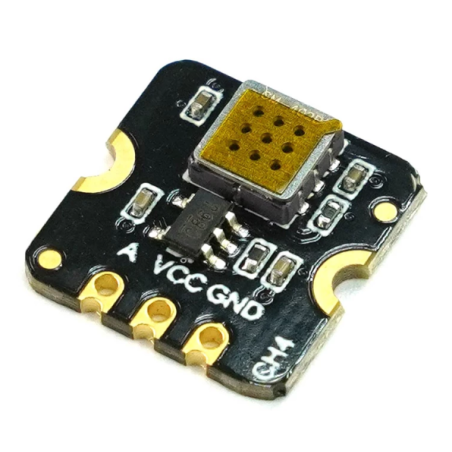

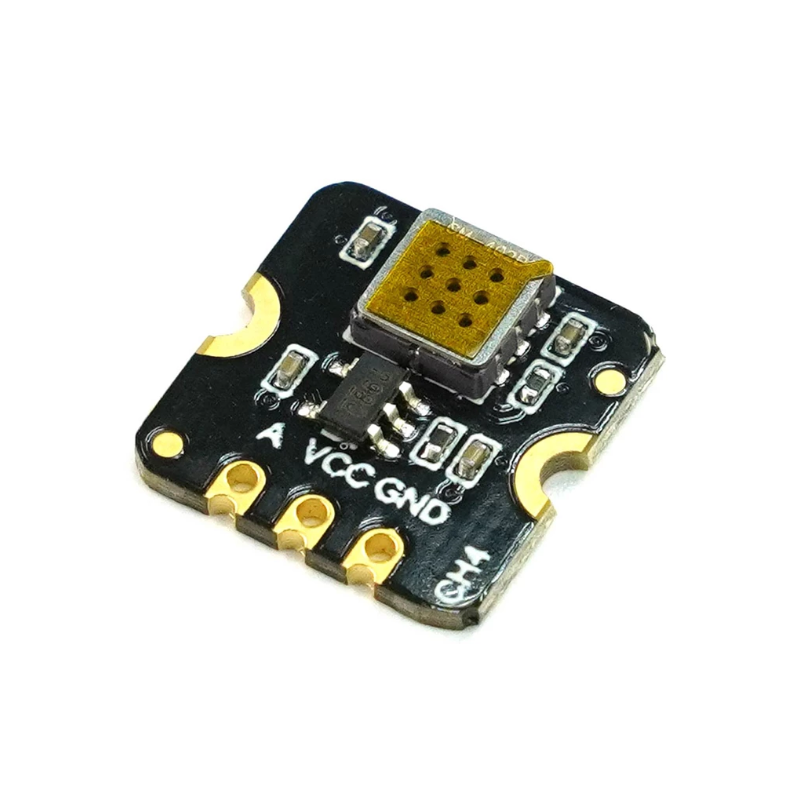

DFRobot SEN0565 Fermion: MEMS Methane CH4 Gas Detection Sensor (Breakout, 1-10000ppm)

SEN0565 is a Fermion: MEMS Methane CH4 Gas Detection Sensor breakout board. It employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions low power consumption (< 20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure methane gas concentration and is suitable for combustible gas leakage monitoring devices, gas leak detectors, fire/safety detection systems, environmental monitoring, indoor air quality, industrial safety and health applications.

Compact size, measuring only 13 x 13 x 2.5mm

Gas detected: CH4, C3H8, etc

High sensitivity and rapid response recovery

Advanced MEMS technology

Detection range: 1-10000ppm (C3H8)

5V operating voltage

Analog voltage output signal

Sensitivity: R0(in air)/Rs(in 5000ppm CH4) ≥ 2

Lifespan: ≥5 years (in air)

Operating temperature range from -10 to 50°C
