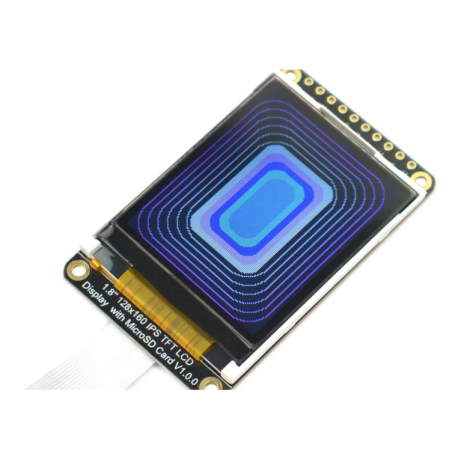

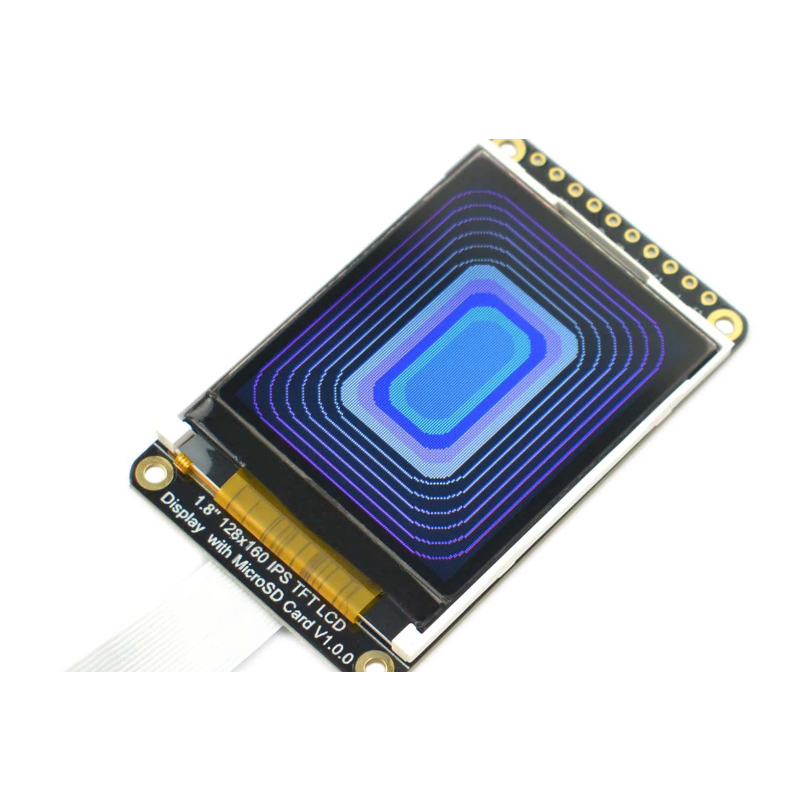

DFRobot DFR0928 Fermion: 1.8" 128x160 IPS TFT LCD Display with MicroSD Card Slot (Breakout)

DFR0928 is a Fermion: 1.8" 128x160 IPS TFT LCD Display breakout board with MicroSD card slot. This module provides users with two wiring methods: pin header wiring and GDI (General Display interface). You can directly connect the display to a FireBeetle main controller using an FPC cable. Plug and play, easy to wire. Besides, the display supports a low refresh rate and offers a good display effect and strong versatility. It can be used in applications like sensor monitoring and alarm, Arduino temperature monitor, fan controller, etc.

SPI (4-wire) communication

Operating voltage range from 3.3 V - 5 V

TFT viewing angle is 120degrees

SPI communication

Interface Mode: GDI, pin header

0.11W full-screen power consumption

Operating temperature range from -10 to +60°C

Alt REFERENCE: 4733239
