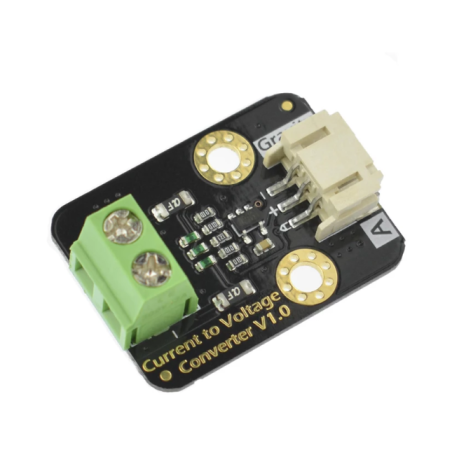

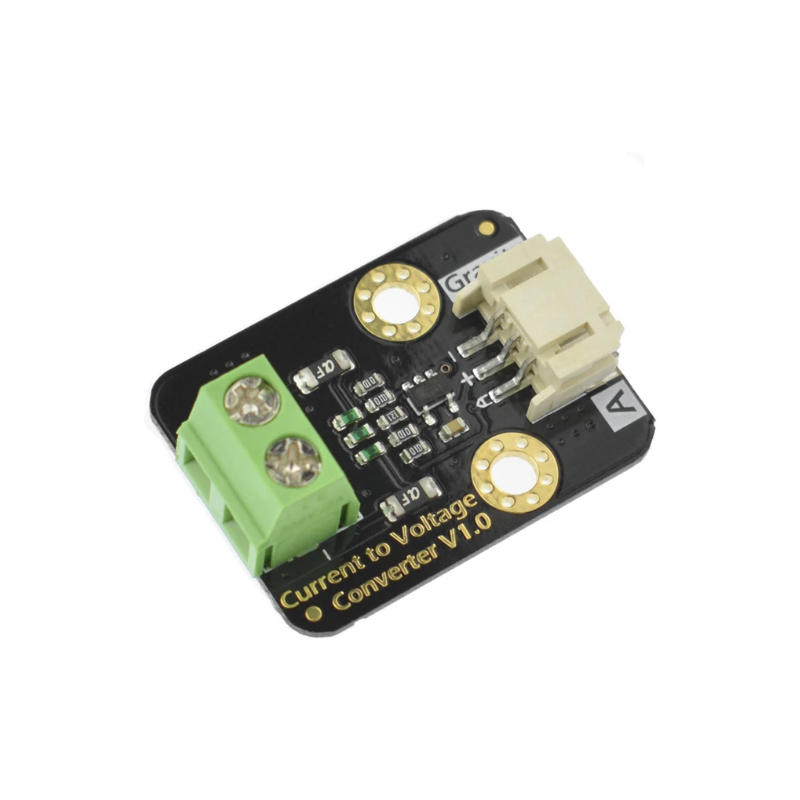

DFRobot SEN0262 Gravity: Analog Current to Voltage Converter(for 4~20mA Application)

SEN0262 is a gravity analogue current-to-voltage converter. This current-to-voltage module can linearly convert 0 to 25mA current signals into 0 to 3V voltage signals. Industrial sensors or devices usually have a current signal output of 4 to 20mA. With this current-to-voltage module, your main control board can easily attain the current signals input from industrial sensors or devices. Normally, current signals lower than 4mA can be used for fault diagnosis, and current signals higher than 20mA can be used for overrun detection. Therefore, this module is specially designed with a wide detection range from 0 to 25mA, and compatible with fault detection, overrun detection applications.

Support wide voltage range from 3.3 to 5.5V

Supply voltage range from 3.3 to 5.5V

Detection range from 0 to 25mA DC

Measurement accuracy is ±0.5% F.S. at 16-bit ADC, ±2% F.S. at 10-bit ADC

120 ohm termination resistance

PH2.0-3P connector

Product size is 30mm x 22mm

Alt REFERENCE: 3517951
