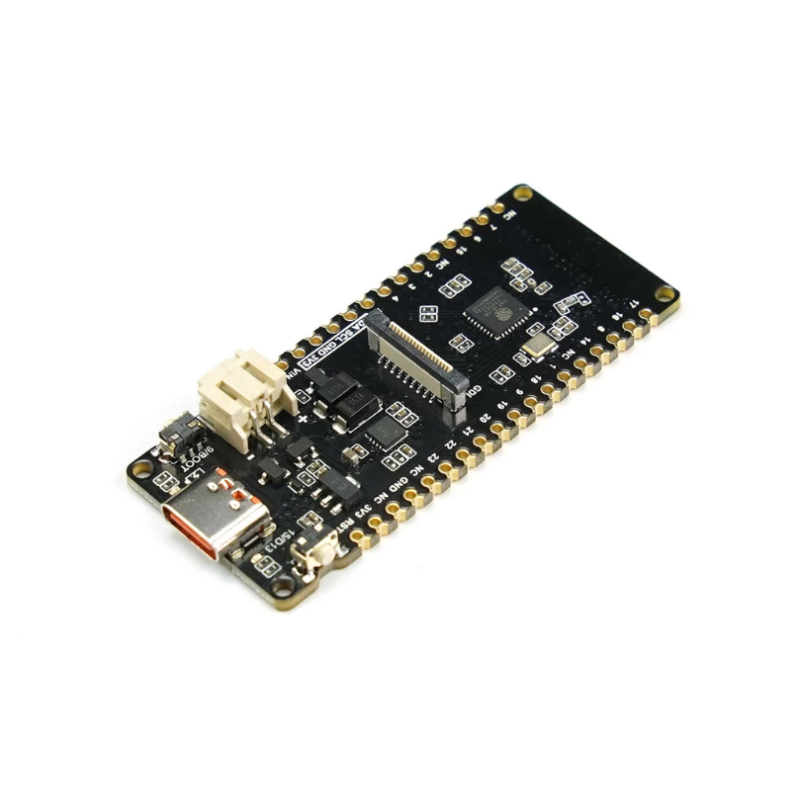

DFRobot DFR1075 FireBeetle 2 ESP32-C6 IoT Development Board for Smart Home Control System

DFR1075 is a FireBeetle 2 ESP32-C6 IoT development board for smart home control system. The FireBeetle 2 ESP32-C6 is a versatile low-power IoT controller board designed for smart home automation, control and monitoring system. It features a 160MHz RISC-V 32-bit processor, providing excellent energy efficiency and flexibility for Internet of Things (IoT) projects. The board supports multiple communication protocols, including Wi-Fi 6, Bluetooth 5, Zigbee 3.0, and Thread 1.3, enabling versatile wireless connectivity. Suitable for indoor air quality monitoring, indoor ambient light, balcony plant soil monitoring, outdoor weather station.

Detailed guides are provided for easy setup and programming

Multi-protocol communication support, including Wi-Fi, BLE, Zigbee, and Thread

Ultra-low power mode with a deep sleep current of only 16µA

Solar charging capability

Battery level detection facilitates the monitoring of the device's battery status

Support Wi-Fi 6 for theoretical speeds up to 9.6Gbps and BLE 5 for a max transmission rate of 2Mbps

Onboard GDI Interface, provides an easy connection to screens for efficient data visualization

3.3V operating voltage, 5V DC Type-C input voltage, 0.5A max charging current

RISC-V single-core processor, 160MHz frequency, 512KB SRAM, 320KB ROM, 4MB flash, 16KB RTC SRAM

Operating temperature range from -10 to 60°C and dimension is 25.4x60mm/1x2.36”

Alt REFERENCE :4457347
