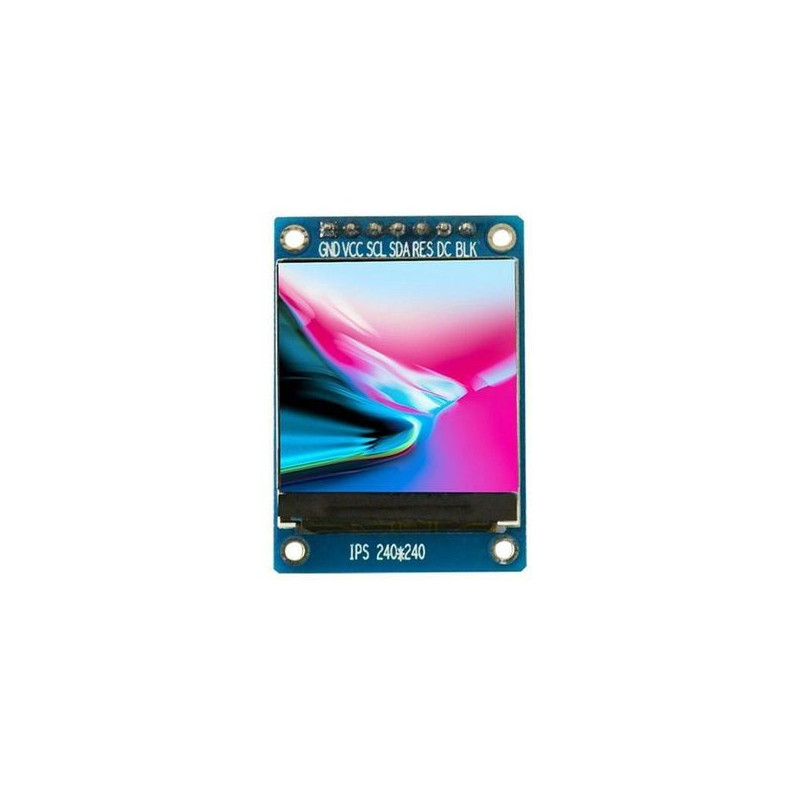

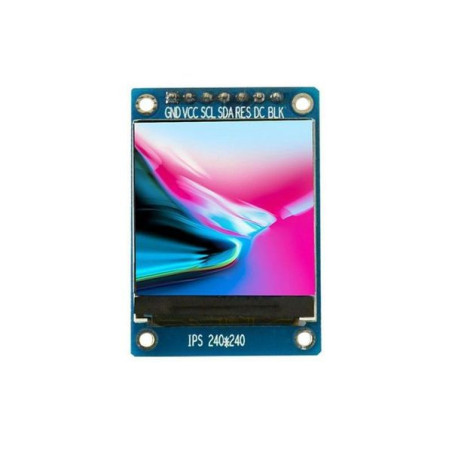

1.3 inch IPS HD Screen ST7789 Drive Full Color LCD OLED Display Module
R267.00
Tax included
Features:
HD IPS colour screen, the colour is more vivid than the ordinary TFT LCD screen. The resolution is 240x240, and the display direction can be adjusted.
Specifications:
- Size: 1.3inch
- Display Mode: Normally black IPS
- Display Format Graphic: 240RGB240 Dot-matrix
- Input Data: SPI interface
- Drive IC ST7789VW
- Dimensional outline 27.78(W)39.22 (H)3.0+/-0.1(T)mm
- Resolution 240RGB240 Dots
- LCD Active area 23.4 (W)*23.4 (H)
- Dot pitch 0.0975(H) x 0.0975(V) mm
- Viewing Direction All View
- Operating Temperature -20?70°C
Application:
Ideal for Hobbyist, Engineers, Students or any person who would like to add a display to their electronics project. Can work with Arduino, Raspberry Pi, or any other development board that uses SPI INTERFACE
What's in the box
1 x 1.3 inch Display Module
ST7789VW-030531
