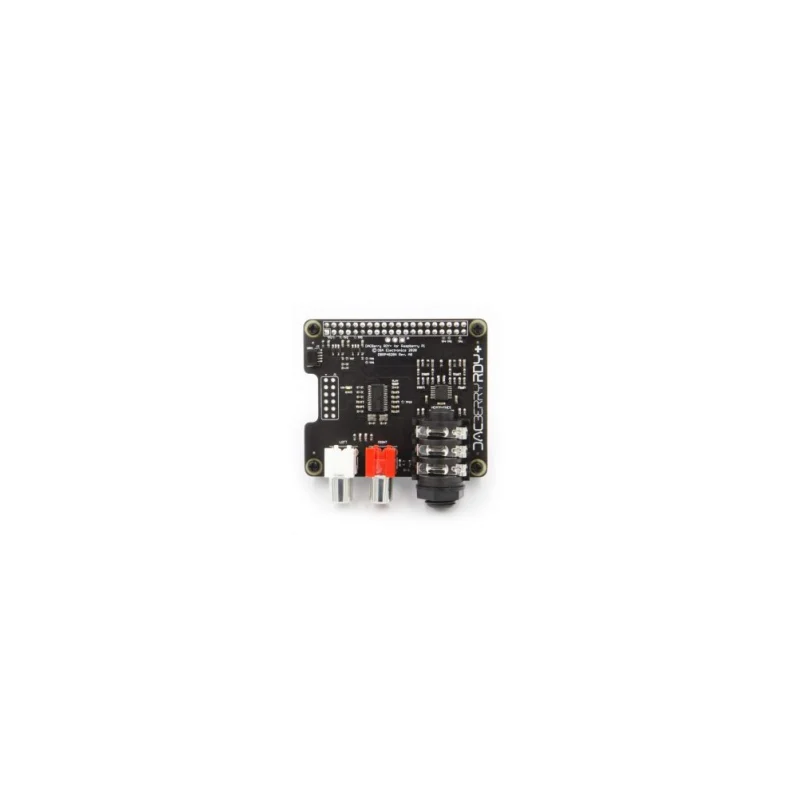

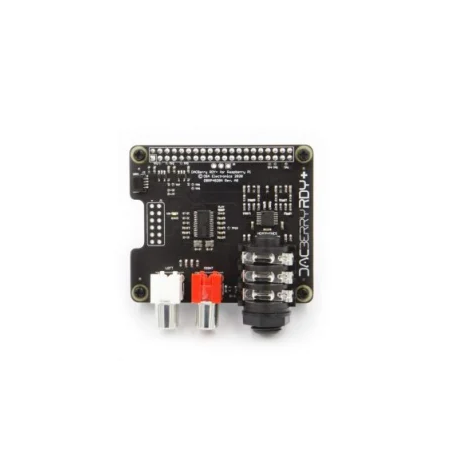

OSA Electronics DBR4020N+ OSA Electronics DACBerry RDY+

The OSA Electronics DAC berry ready plus uses the same DAC as DAC berry one plus which is able to reproduce files up to 384kHz with 32bit resolution.

Compatible with all Raspberry Pi’s with the 40-pin connector
Directly powered from the Raspberry Pi
Dual ultra low-noise LDO’s
Low-phase noise oscillators
Dual ultra low-jitter

Description
Who said high quality audio was expensive for Raspberry Pi? The DACBerry
RDY+ (Ready Plus) uses the same DAC as DACBerry ONE+, able to reproduce files up
to 384kHz with 32bit resolution. It’s plugs directly on the Raspberry Pi
A+/B+/2/3/3B+/4B. Compatible with Asus Tinker board and other ones using the same
GPIO.
The RDY+ incorporates a two new Ultra Low Noise LDO that brings a
cleaner audio output.
Specifications
– Analog stereo soundcard
– Burr-Brown DAC PCM5142
– Texas Instruments TPA6138A2
– Up to 384kHz / 32bit resolution
– Dual ultra low-jitter and low-phase noise oscillators
– Dual ultra low-noise LDO’s for analog and digital power rails
– Up to 0.5W on 32 Ohm Headphones
– Headphone detection
– Directly powered from the Raspberry Pi
– IR Sensor capable for remote control
– SDB™ 1.2 Connector
– Onboard I2C connector (Qwiic compatible) for peripherals
– Compatible with all Raspberry Pi’s with the 40-pin connector
– Compatible with other boards using I2S protocol
– Low-Noise design with isolated Digital and Analog parts
– Compatible
with OSMC / RuneAudio / Volumio / Moode / PiCorePlayer / PiMusicB
ox / OpenELEC and others
– Designed and assembled in the beautiful Barcelona, Spain.
We only use original parts and from top brands on our products. Stay
away from products using fake parts and help us to win the battle
against counterfeit semiconductors products.
