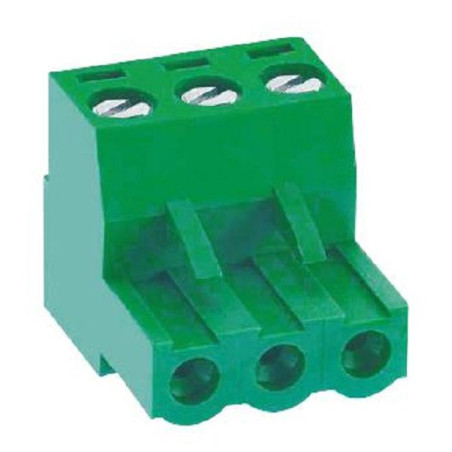

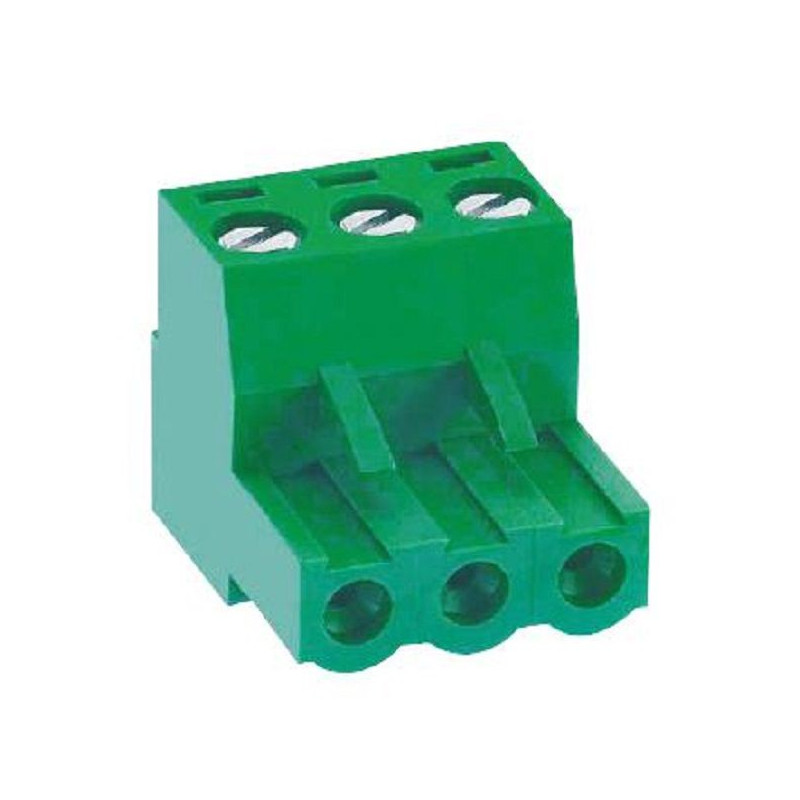

Multicomp Pro (MC000183) Pluggable Terminal Block, 5.08 mm, 12 Ways

Pluggable Terminal Block, 5.08 mm, 12 Ways, 24AWG to 12AWG, Screw, 16 A Product Overview The MC000183 is a 12-way 16A straight Pluggable Terminal Block with green polyamide 66 insulating body, tin-plated phosphor bronze contacts and a zinc+Cr?³ screw. It has screw wire connection and 2000VAC minimum insulation withstand voltage. >2000MR at 500V Insulation resistance 7lb-inch Screw torque -40 to 105°C Operating temperature range Applications Industrial Product Information Pitch Spacing: 5.08mm No. of Positions: 12Ways Wire Size (AWG): 24AWG to 12AWG Wire Size AWG Min: 24AWG Wire Size AWG Max: 12AWG Wire Connection Method: Screw Conductor Area CSA: - Rated Current: 16A Rated Voltage: 300V Product Range: -
