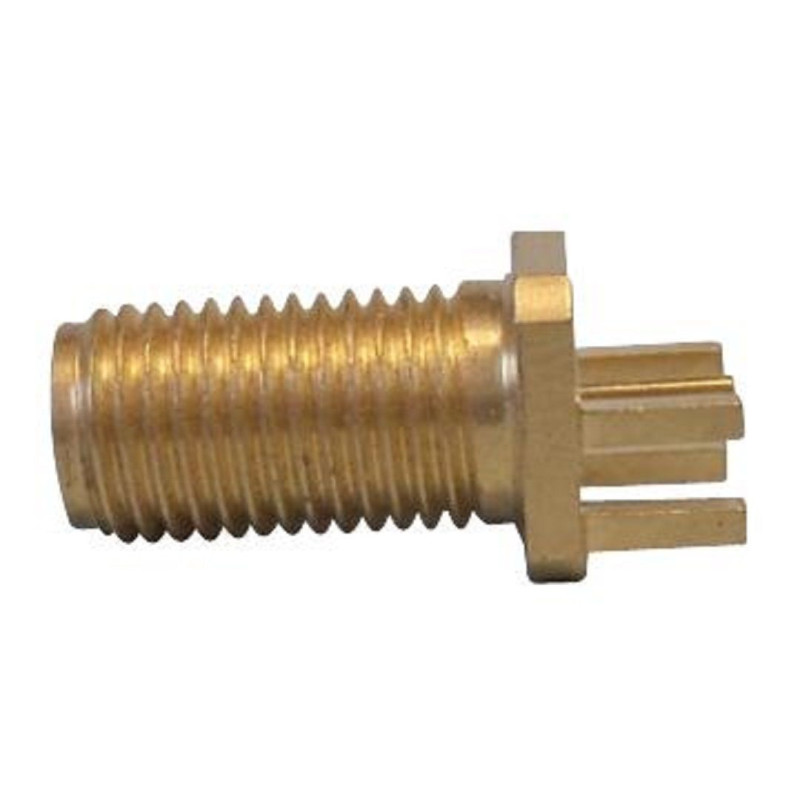

Molex (73251-2120) RF / Coaxial Connector, PCB Edge Mount, SMA Coaxial

RF / Coaxial Connector, PCB Edge Mount, SMA Coaxial, Straight Bulkhead Jack Product Overview The 73251-2120 is a 50 ohm PCB edge mount straight SMA Jack. Features gold-plated brass body, PTFE insulator and gold-plated Beryllium copper centre contact. Subminiature design Threaded coupling Edge mount - 1.57 mm board thickness Supplied without hardware Product Information Connector Type: SMA Coaxial Connector Body Style: Straight Bulkhead Jack Coaxial Termination: Board Edge / End Launch Impedance: 50ohm Coaxial Cable Types: - Contact Material: Beryllium Copper Contact Plating: Gold Plated Contacts Frequency Max: 18GHz Connector Mounting: PCB Mount Product Range: 73251
