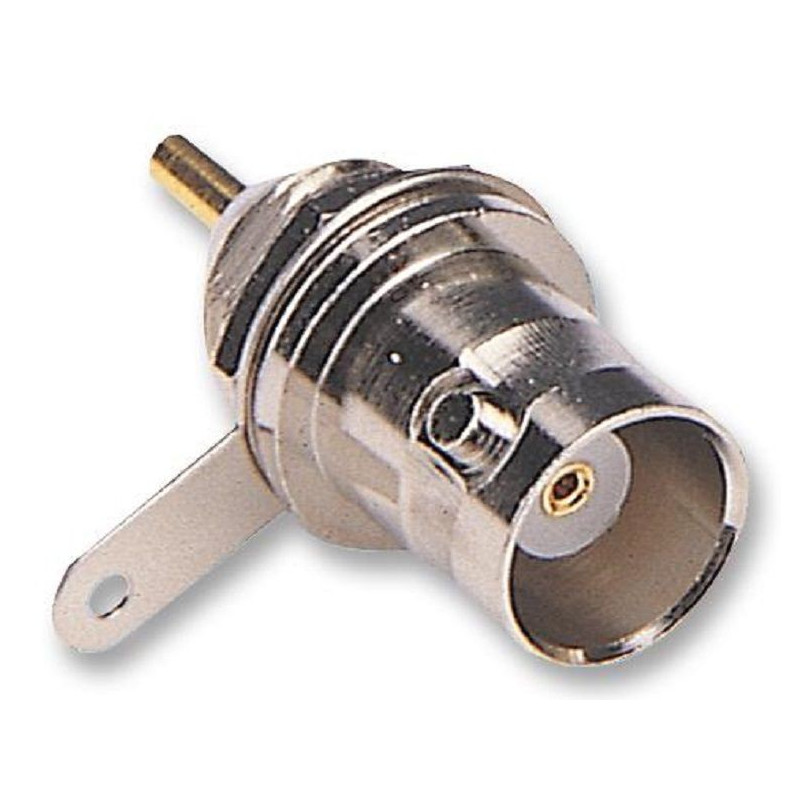

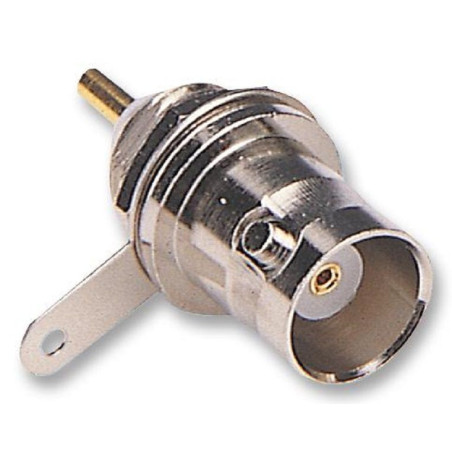

Multicomp Pro (MP-13-25) RF / Coaxial Connector, BNC Coaxial, 50 ohm

RF / Coaxial Connector, BNC Coaxial, Straight Bulkhead Jack, Solder, 50 ohm, Brass44 Product Overview The 13-25 from Multicomp Pro is a straight BNC bulkhead jack. Gold plated brass centre contact Polyoxymethylene (POM) insulation Connector interface in accordance MIL-STD-348 A standard Nickel (100?? minimum) plated brass body Impedance is 50 ohm Applications Industrial, RF Communications, Communications & Networking Product Information Connector Type: BNC Coaxial Connector Body Style: Straight Bulkhead Jack Coaxial Termination: Solder Impedance: 50ohm Coaxial Cable Types: - Contact Material: Brass Contact Plating: Gold Plated Contacts Frequency Max: 11GHz Connector Mounting: Panel Mount Product Range: -
