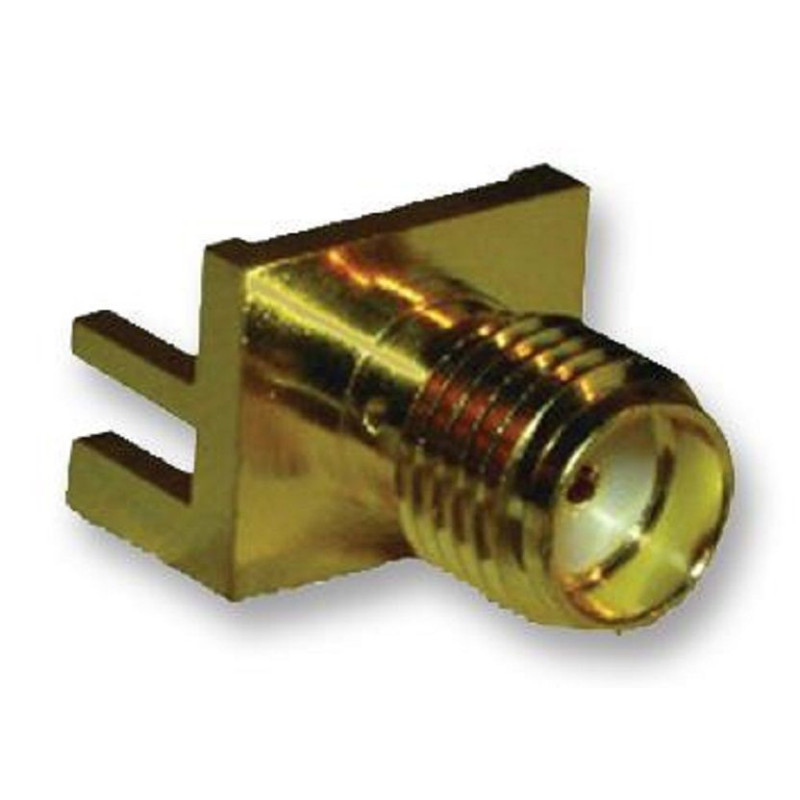

Amphenol (132255) RF / Coaxial Connector, SMA Coaxial, Solder, 50 ohm

RF / Coaxial Connector, SMA Coaxial, Straight Jack, Solder, 50 ohm, Beryllium Copper Product Overview The 132255 is a straight SMA Coaxial Jack with gold-plated beryllium copper contact. Semi-precision, sub-miniature and high-frequency connector offer reliable broadband performance DC to 18GHz with low reflection and constant 50R impedance. High mechanical strength, high durability and low VSWR. Matured design principles. Careful manufacturing at all stages. 2mR (centre), 2mR (body) and 0.5mR (braid to body) Contact resistance 5000MR Insulation resistance PTFE insulator Silicone rubber gasket Applications RF Communications Product Information Connector Type: SMA Coaxial Connector Body Style: Straight Jack Coaxial Termination: Solder Impedance: 50ohm Coaxial Cable Types: - Contact Material: Beryllium Copper Contact Plating: Gold Plated Contacts Frequency Max: 18GHz Connector Mounting: PCB Mount Product Range: -
