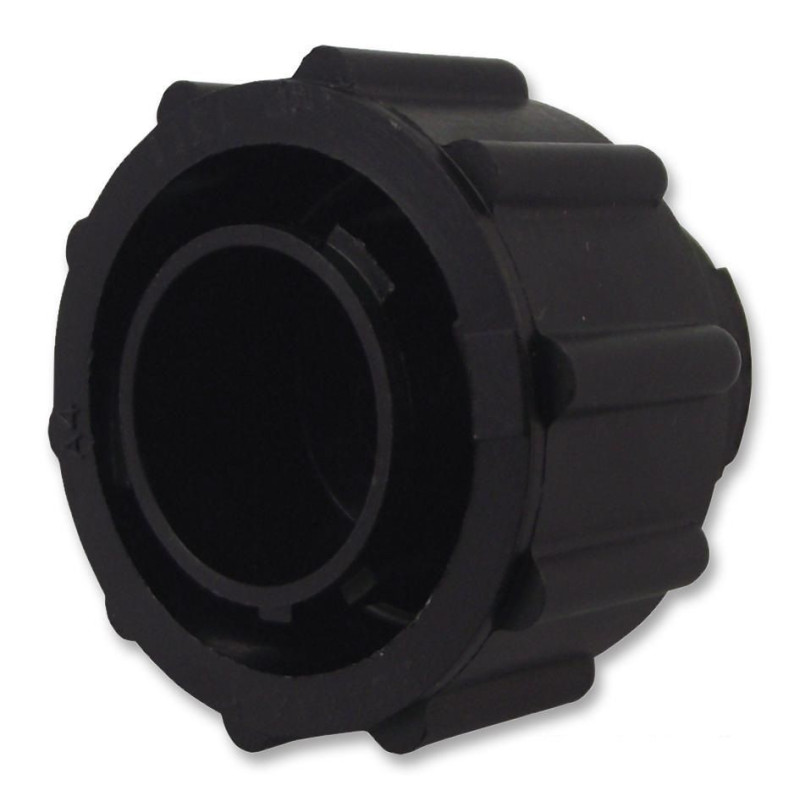

TE Connectivity (206039-1) Circular Connector, 28 Contacts, Crimp Pin
R439.00
Tax included
Delivered within 5 to 7 working days
The 206039-1 is a 28-position Free Hanging Plug with socket type contacts and 17-28 insert arrangement. The reverse sex circular plastic connector is made of UL94V-0 rated black thermoplastic.
Product Overview
The series 2 connector accepts size 20 DF (precision formed) and size 20 DM (screw-machined) pin contacts. Maximum current carrying capability is 7.5A.
- Lightweight
- Quick connect/disconnect capability with thread assist, positive detent coupling
- Polarized for proper mating of connector halves
- Keyed mating alignment
- Threaded coupling mating retention
- Contact protection
Applications
Commercial, Signal Processing, Power Management
Product Information
Product Range: CPC Series 2
Circular Connector Shell Style: Cable Mount Plug
No. of Contacts: 28Contacts
Circular Contact Type: Crimp Pin - Contacts Not Supplied
Coupling Style: Threaded
Connector Body Material: Thermoplastic Body
What's in the box
1 x Circular Connector
