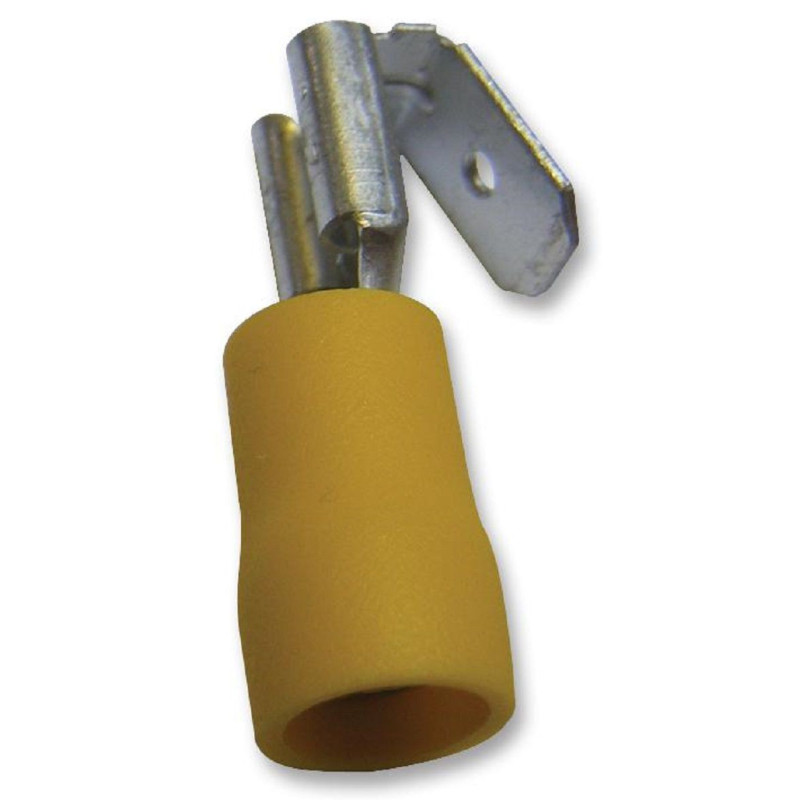

Multicomp Pro (PBDD5-250) Quick Disconnect Terminal, 0.25"x0.032", Female

Quick Disconnect Terminal, PBDD5, Female Piggyback Disconnect, 6.35mm x 0.81mm, 0.25"x0.032" Product Overview The PBDD5-250 is a yellow Piggy-back Terminal made of brass with tin plated finish of 0.4mm thickness. It has a vinyl insulator, double crimp with copper sleeve on barrel termination. It accepts up to 12 to 10AWG wire gauge. 600V at 105°C Electrical ratings Applications Communications & Networking Product Information Product Range: PBDD5 Terminal Type: Female Piggyback Disconnect Tab Size - Metric: 6.35mm x 0.81mm Tab Size - Imperial: 0.25" x 0.032" Wire Size AWG Min: 12AWG Wire Size AWG Max: 10AWG Insulator Colour: Yellow Conductor Area CSA: 6mm² Insulator Material: Vinyl Terminal Material: Brass
