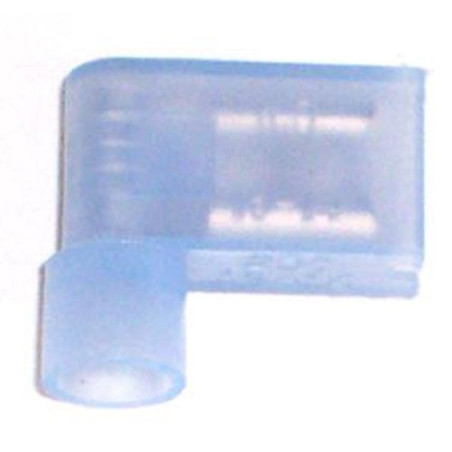

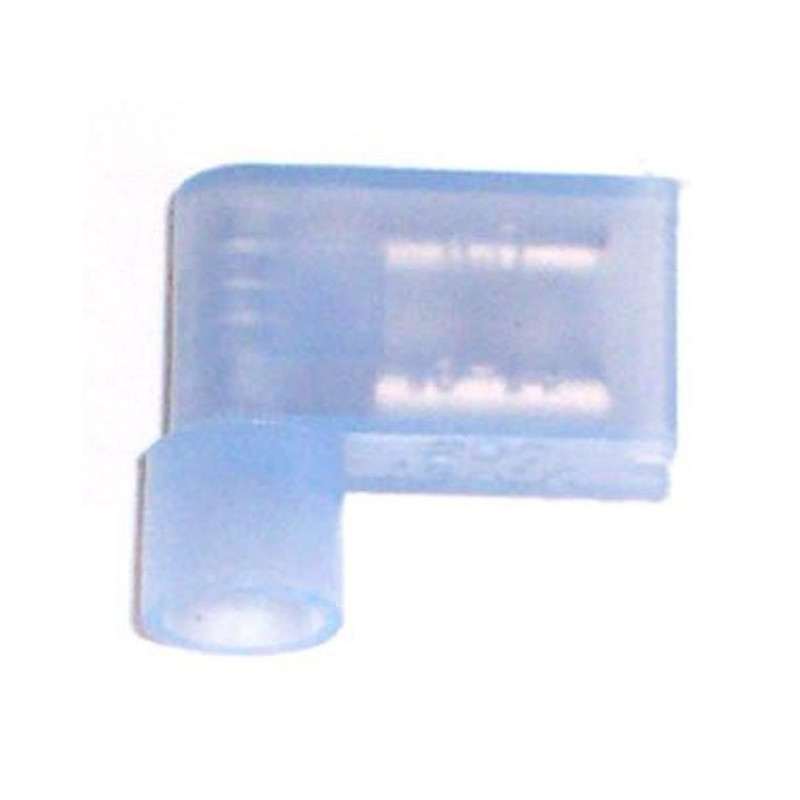

Multicomp Pro (DNFPO2-6.3FLAG) Quick Disconnect Terminal, DNFP, 16 AWG
R699.00
Tax included
Delivered within 5 to 7 working days
The DNFPO2-6.3FLAG is a blue female insulated Crimp Terminal made of brass with tin plated finish, 0.45mm thickness, nylon insulation and flag disconnect. This DNFP series terminal accepts 16 to 14AWG wire size.
Product Overview
- 300V at 105°C Maximum electrical rating
- 12A Rated current
Applications
- Industrial, Communications & Networking
Product Information
- Product Range: DNFP
- Terminal Type: Female Quick Disconnect
- Tab Size - Metric: 6.35mm x 0.81mm
- Tab Size - Imperial: 0.25" x 0.032"
- Wire Size AWG Min: 16AWG
- Wire Size AWG Max: 14AWG
- Insulator Colour: Blue
- Conductor Area CSA: 2.63mm²
- Insulator Material: Nylon (Polyamide)
- Terminal Material: Brass
What's in the box
- 100 x Quick Disconnect Terminals
