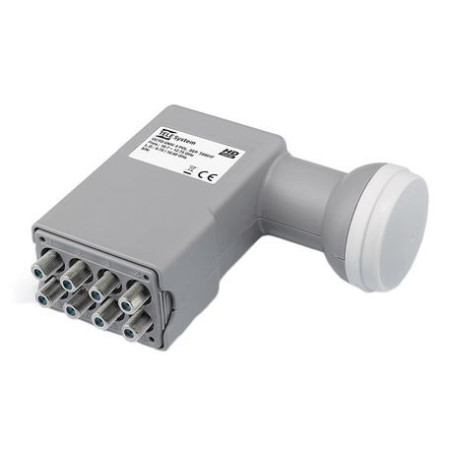

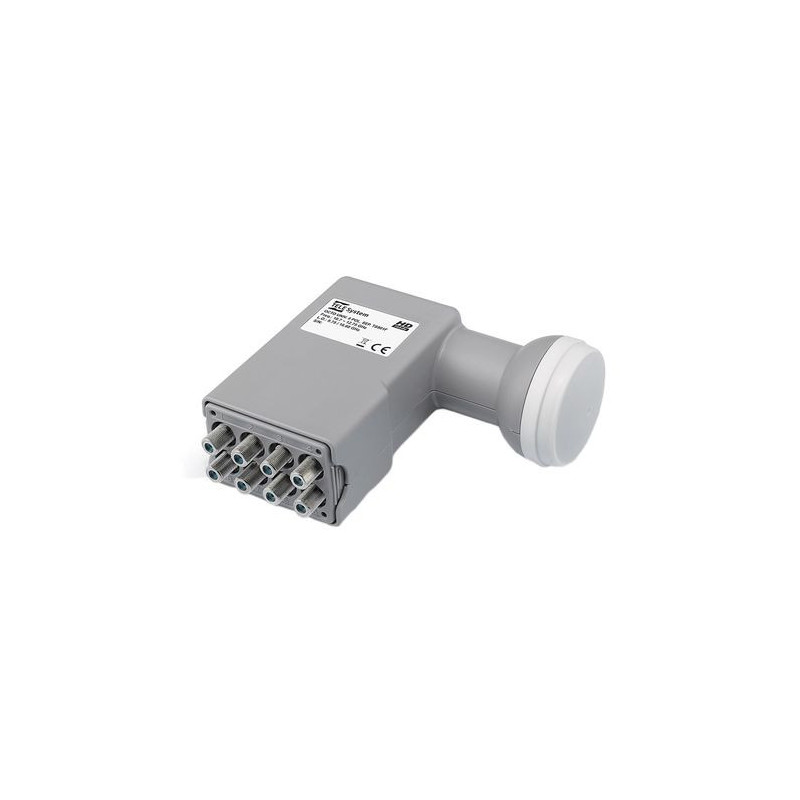

Telesystems QUAD-LNBF Quad Ku Band LNB - HD Ready
R959.00
Tax included
This product is DVB-S2 compliant. Only use DVB-S2 compliant products to insure the best quality signal.
Low Band I/P Frequency Range 1-.7 - 11.7 GHz
Low Band Output Frequency Range 950 - 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 - 12.75 GHz
High Band Output Frequency Range 1100 - 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.2 GHz (0.7 dB Max)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max
Phase Noise (@ 10KHz) -90 dBc / Hz Max
Conversion Gain 55 dB Min
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band) +/- 4dB
Image Rejection 40 dB Min
Cross Polarization Isolation 22 dB Min
Control Signal Ca (Vertical Polarization) 10.0 - 14.0 V
Control Signal Cb (Horizontal Polarization 16.0 - 20.0 V
Additional Features
Long Neck for multi satellite reception installations
Low Phase Noise, DVB-S2 (HDTV) compliant
Low Noise figure
Low power consumption
High Cross-pole performance
High Frequency stability
This product is DVB-S2 compliant. Only use DVB-S2 compliant products to insure the best quality signal.
QUAD-LNBF
